Five Minute Silverlight 3 Aides-Memoire #5 – Based on Styles

    <UserControl.Resources>
        <Style x:Key="ColouredContentControlStyle" TargetType="ContentControl">
            <Setter Property="Height" Value="30" />
            <Setter Property="Width" Value="100" />
            <Setter Property="Margin" Value="10" />
            <Setter Property="FontFamily" Value="Verdana" />
            <Setter Property="FontSize" Value="14" />
            <Setter Property="FontStyle" Value="Italic" />
        </Style>

        <Style x:Key="ColouredCheckBoxStyle" BasedOn="{StaticResource ColouredContentControlStyle}" TargetType="CheckBox">
            <Setter Property="Width" Value="154" />
        </Style>

        <Style x:Key="RedButtonStyle" BasedOn="{StaticResource ColouredContentControlStyle}" TargetType="Button">
            <Setter Property="Foreground" Value="Red" />
        </Style>
        <Style x:Key="GreenButtonStyle" BasedOn="{StaticResource ColouredContentControlStyle}" TargetType="Button">
            <Setter Property="Foreground" Value="Green" />
        </Style>
        <Style x:Key="YellowCheckBoxStyle" BasedOn="{StaticResource ColouredCheckBoxStyle}" TargetType="CheckBox">
            <Setter Property="Foreground" Value="Yellow" />
        </Style>
        <Style x:Key="OrangeRadioButtonStyle" BasedOn="{StaticResource ColouredContentControlStyle}" TargetType="RadioButton">
            <Setter Property="Foreground" Value="Orange" />
            <Setter Property="Width" Value="190" />
            <Setter Property="FontWeight" Value="Bold" />
        </Style>
    </UserControl.Resources>
    <Grid x:Name="LayoutRoot">
        <Grid.Background>
            <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                <GradientStop Color="Black" Offset="0"/>
                <GradientStop Color="White" Offset="1"/>
            </LinearGradientBrush>
        </Grid.Background>
        <StackPanel Orientation="Vertical" Margin="20">
            <Button Style="{StaticResource RedButtonStyle}" Content="Red Button" />
            <CheckBox Style="{StaticResource YellowCheckBoxStyle}" Content="Yellow CheckBox" />
            <RadioButton Style="{StaticResource OrangeRadioButtonStyle}" Content="Orange RadioButton" />
            <Button Style="{StaticResource GreenButtonStyle}" Content="Green Button" />
        </StackPanel>
    </Grid>

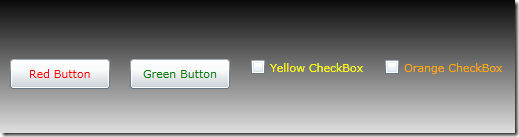

Five Minute Silverlight 3 Aides-Memoire #4 – Merged Resource Dictionaries

ButtonStyles.xaml:

<ResourceDictionary
    x:Name="ButtonsStyles"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    >
    <Style x:Key="RedButton" TargetType="Button">
        <Setter Property="Foreground" Value="Red" />
        <Setter Property="Height" Value="30" />
        <Setter Property="Width" Value="100" />
        <Setter Property="Margin" Value="10" />
    </Style>
    <Style x:Key="GreenButton" TargetType="Button">
        <Setter Property="Foreground" Value="Green" />
        <Setter Property="Height" Value="30" />
        <Setter Property="Width" Value="100" />
        <Setter Property="Margin" Value="10" />
    </Style>
</ResourceDictionary>

CheckBoxStyles.xaml:

<ResourceDictionary
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    x:Name="CheckBoxStyles"
    >
    <Style x:Key="YellowCheckBox" TargetType="CheckBox">
        <Setter Property="Foreground" Value="Yellow" />
        <Setter Property="Height" Value="30" />
        <Setter Property="Margin" Value="10" />
    </Style>
    <Style x:Key="OrangeCheckBox" TargetType="CheckBox">
        <Setter Property="Foreground" Value="Orange" />
        <Setter Property="Height" Value="30" />
        <Setter Property="Margin" Value="10" />
    </Style>
</ResourceDictionary>

MainPage.xaml:

<UserControl.Resources>
    <ResourceDictionary>
        <ResourceDictionary.MergedDictionaries>
            <ResourceDictionary Source="ButtonStyles.xaml" />
            <ResourceDictionary Source="CheckBoxStyles.xaml" />
        </ResourceDictionary.MergedDictionaries>
    </ResourceDictionary>
</UserControl.Resources>
<Grid x:Name="LayoutRoot">
    <Grid.Background>
        <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
            <GradientStop Color="Black" Offset="0"/>
            <GradientStop Color="White" Offset="1"/>
        </LinearGradientBrush>
    </Grid.Background>
    <StackPanel Orientation="Horizontal">
        <Button Grid.Row="0" Grid.Column="0" Style="{StaticResource RedButton}" Content="Red Button" />
        <Button Grid.Row="0" Grid.Column="1" Style="{StaticResource GreenButton}" Content="Green Button" />
        <CheckBox Grid.Row="1" Grid.Column="0" Style="{StaticResource YellowCheckBox}" Content="Yellow CheckBox" />
        <CheckBox Grid.Row="1" Grid.Column="1" Style="{StaticResource OrangeCheckBox}" Content="Orange CheckBox" />
    </StackPanel>
</Grid>

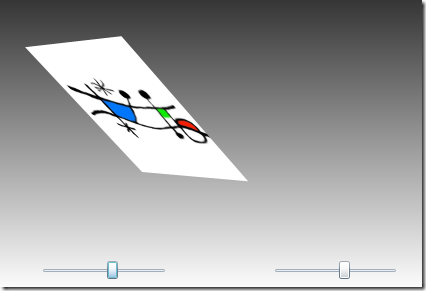

Five Minute Silverlight 3 Aides-Memoire #3 – Element-to-element binding

    <Grid x:Name="LayoutRoot">
        <Grid.RowDefinitions>
            <RowDefinition Height="*" />
            <RowDefinition Height="40" />
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition />
            <ColumnDefinition />
        </Grid.ColumnDefinitions>
        <Grid.Background>
            <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                <GradientStop Color="Black" Offset="0"/>
                <GradientStop Color="White" Offset="1"/>
            </LinearGradientBrush>
        </Grid.Background>
        <Image Grid.Column="0" HorizontalAlignment="Left" Margin="50,50,0,0" Width="200" Height="200" Source="OpenfeatureLizardSquare.jpg">
            <Image.Projection>
                <PlaneProjection x:Name="ImagePlaneProjection"/>
            </Image.Projection>
        </Image>
        <Slider Value="{Binding RotationX, Mode=TwoWay, ElementName=ImagePlaneProjection}" Grid.Row="1" Grid.Column="0" x:Name="XSlider" Minimum="-360" Maximum="360" Margin="50,10" />
        <Slider Value="{Binding RotationY, Mode=TwoWay, ElementName=ImagePlaneProjection}" Grid.Row="1" Grid.Column="1" x:Name="YSlider" Minimum="-360" Maximum="360" Margin="50,10" />
    </Grid>

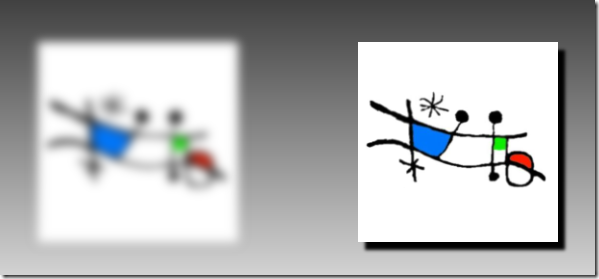

Five Minute Silverlight 3 Aides-Memoire #2 – Pixel Effects

    <Grid x:Name="LayoutRoot">
        <Grid.ColumnDefinitions>
            <ColumnDefinition />
            <ColumnDefinition />
        </Grid.ColumnDefinitions>
        <Grid.Background>
            <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                <GradientStop Color="Black" Offset="0"/>
                <GradientStop Color="White" Offset="1"/>
            </LinearGradientBrush>
        </Grid.Background>
        <Image HorizontalAlignment="Left" Grid.Column="0" Margin="50,50,0,0" Width="200" Height="200" Source="OpenfeatureLizardSquare.jpg">
            <Image.Effect>
                <BlurEffect Radius="15"/>
            </Image.Effect>
        </Image>
        <Image HorizontalAlignment="Left" Grid.Column="1" Margin="50,50,0,0" Width="200" Height="200" Source="OpenfeatureLizardSquare.jpg">
            <Image.Effect>
                <DropShadowEffect ShadowDepth="10"/>
            </Image.Effect>
        </Image>
    </Grid>

Five Minute Silverlight 3 Aides-Memoire #1 – 3D Projection

    <Grid x:Name="LayoutRoot">
        <Grid.Background>
            <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                <GradientStop Color="Black" Offset="0"/>
                <GradientStop Color="White" Offset="1"/>
            </LinearGradientBrush>
        </Grid.Background>
        <Image HorizontalAlignment="Left" Margin="50,50,0,0" Width="200" Height="200" Source="OpenfeatureLizardSquare.jpg">
            <Image.Projection>
                <PlaneProjection RotationX="-25" RotationY="45"/>
            </Image.Projection>
        </Image>
    </Grid>
